Superconductor technology in application

Superconductivity is a fascinating phenomenon in which certain materials completely lose their electrical resistance under specific conditions and can conduct electricity without any loss of energy. This opens up enormous opportunities for increasing energy efficiency in various areas of application.


While conventional high-voltage cables have losses of 2-10%, superconducting cables could transport energy over long distances with virtually no losses. This would significantly improve the overall efficiency of the power grid. Superconducting materials also enable the development of more compact and efficient motors and generators. Superconductors could also lead to significant increases in efficiency in energy conversion and storage. However, most superconductors known today still require very low temperatures, which makes their practical application difficult. However, the enormous progress made in cryotechnology is making this increasingly better and more economical. Research into high-temperature and possible room-temperature superconductors could lead to ground-breaking advances in energy efficiency in the future.

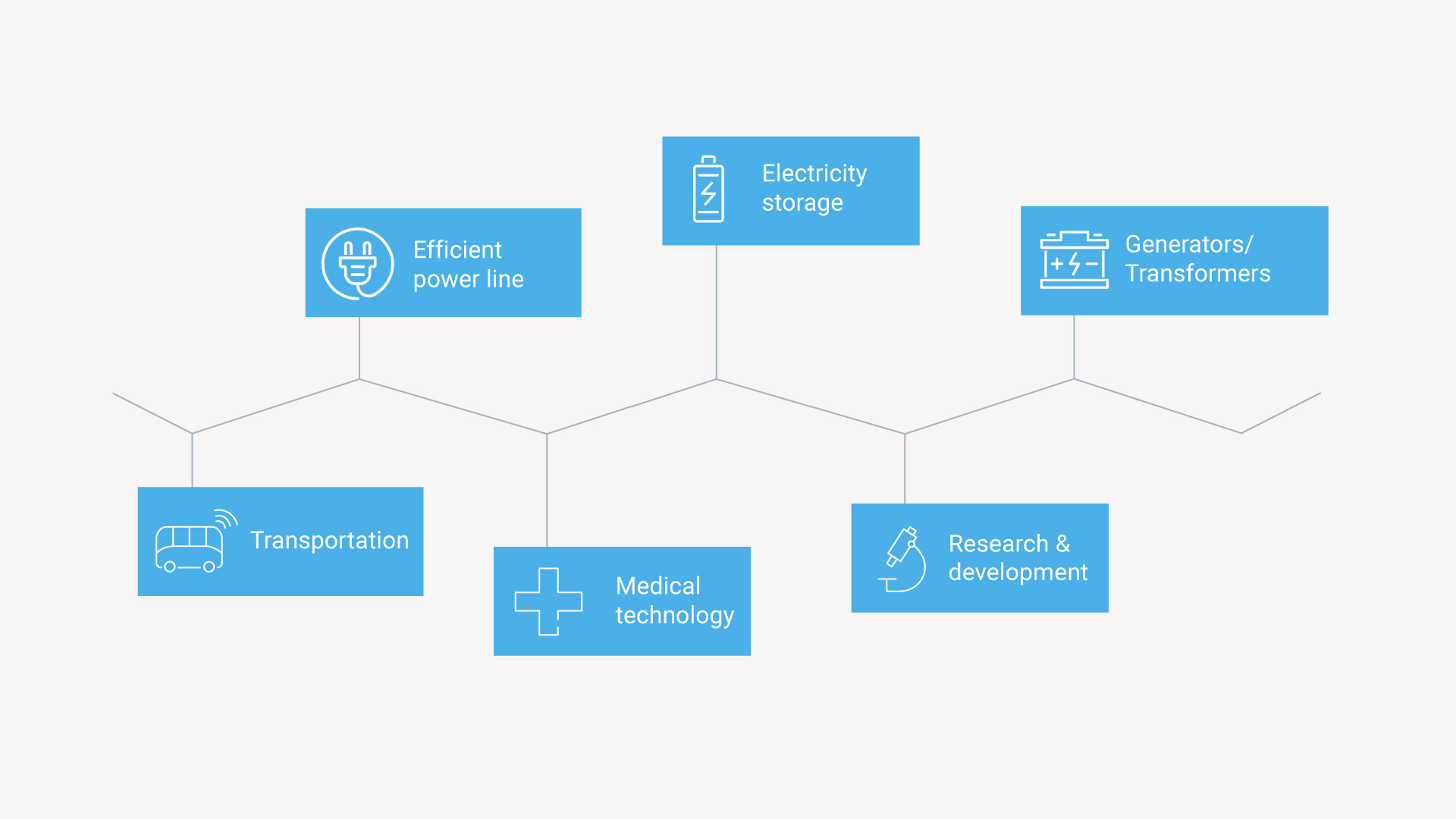

Superconductor technology has the potential to enable innovations in other technical areas. It can be found at various stages of development in the following technology fields:


Themenübersichtig-Supraleitung-EN-grau

Future projects

Efficient power lines

icon_cyan_power_plugAs illustrated in the blog article ‘Superconductivity – a lean solution to a big problem?’, power lines benefit considerably from superconductors. Loss-free energy transmission, space savings, increased current density and environmental friendliness are the advantages attributed to superconductors. Initial realisations and tests, for example in Essen or Munich, show the potential of superconducting high-voltage lines. Successful pilot projects can pave the way for commercial applications.

Superconductors facilitate the integration of renewable energy sources by transporting large amounts of electricity efficiently and loss-free to the point of use with high grid stability. Further opportunities exist in the technological advancement of high-temperature superconductors, which are more cost-efficient and can be used more flexibly, as well as in the development of innovative grid protection technologies. These so-called superconducting fault current limiters can further increase grid stability and optimise the use of renewable energies.

7._Tiefbau_neu-1

Urban space-saving superconductor construction site 2014 (Source: Westenergie)

AdobeStock_166185749_kopie

Less interference with nature with superconductors

Generators and transformers

icon_cyan_accumulator

Superconductors offer significant advantages for generators and transformers. In generators, particularly in wind turbines, for example, superconducting technologies can reduce weight by up to 50 %, enabling lighter towers and smaller foundations. They can be designed to be more compact and lighter, which not only reduces weight but also production costs. They also enable a higher output, often over 10 MW, and improve efficiency through lower losses during operation. One example is a tested 3.6 MW superconducting generator that operated fault-free for over 700 hours.

Transformers also benefit from superconductors as they are more compact and efficient with the same output. Low-loss superconducting transformers require less space and can operate without environmentally hazardous coolants, which makes their use in mobile and stationary systems attractive. Overall, superconducting transformers stand for more efficient and environmentally friendly energy conversion, especially for high outputs from around 1000 MW. High-temperature superconductors promise to make these advantages available at lower outputs in the future.

AdobeStock_43164316_kopie

Superconductors are located in the coils of the rotor

Power storage

Icon_cyan_StromspeicherungSuperconductors play an important role in the storage of energy, particularly through superconducting magnetic energy storage (SMES). These systems store electrical energy in a strong magnetic field generated by a superconducting magnet. The advantages are the high efficiency of 90-97 %, the immediate availability of the energy and the unlimited storage period as long as cooling is maintained. The use of this technology makes it possible to store very large amounts of energy in compact units that can be accessed quickly when needed.

This could improve the integration of renewable energies into the electricity grid and increase the stability of the energy supply, especially in the event of fluctuating generation conditions. However, SMES require complex cooling to very low temperatures and are expensive. There are therefore theoretical approaches to reducing costs, for example by scaling up the storage capacity. By developing larger SMES systems with storage capacities of 1-2 MWh, instead of the current 55.6 Wh, the costs per stored energy unit could be reduced. Further possibilities are offered by series production and further improvement of the materials.

AdobeStock_681146256_kopie

Conventional batteries as a symbol for electricity storage

AdobeStock_790308499_kopie

Accumulator rows in the storage power plant

Which technologies are already benefiting from superconductors?

Energy transmission as an example

icon_cyan_power_plugThe property of superconductivity opens up a wide range of innovative applications. Over the last few decades, research into superconductors has steadily increased, leading to new discoveries that could fundamentally change our understanding of electricity and magnetism.

Superconductor technology is revolutionising the energy sector through lossless power transmission. Superconductors enable the efficient transmission of electrical energy over long distances, minimising energy losses. They are used in high-voltage direct current transmissions, transformers and generators. In addition, superconducting magnetic energy storage (SMES) offers a fast and effective way of storing and supplying large amounts of energy, especially in times of high demand.

Research as an example

Icon_cyan_Anmietung des Optik-LaborsSuperconductors play a crucial role in the Large Hadron Collider (LHC), the world's most powerful particle accelerator. The superconducting magnets of the LHC, which are made of a niobium-titanium alloy, generate magnetic fields of up to 8 Tesla, which are necessary for deflecting the particle beams on their circular path. Without these superconducting magnets, the LHC ring would be 120 kilometres long instead of the current 27 kilometres and would require around forty times more electrical energy.

Magnetic levitation railway example

Icon_cyan_Transportsysteme

Superconductors can be used in the field of transport due to the Meissner-Ochsenfeld effect. This describes the ability of superconductors to completely displace an external magnetic field from its interior when it enters the superconducting state. This means that superconductors not only act as ideal conductors, but also as ideal diamagnets. This effect was used in the maglev train, a prototype of which is on display at the Munich Transport Centre. The ‘supra-glider’ hovers a few centimetres above a magnetic track and can be set in motion with a gentle push. There are already plans to implement maglev trains in public transport in Japan and China.

Medical technology as an example

Icon_cyan_MedizinSuperconductors offer significant advantages in medical technology, particularly in magnetic resonance imaging (MRI). They make it possible to generate extremely strong magnetic fields, which are crucial for high-resolution images of soft tissue and tumours. This improves tumour detection and treatment, as the tumour can be more precisely differentiated from healthy tissue. In addition, real-time MRI imaging allows adjustments to be made during radiotherapy, making treatment more effective.

AdobeStock_80893767_kopie

Patient for examination in the magnetic resonance tomograph

AdobeStock_898084230_kopie

Large Hadron Collider particle accelerator at CERN

AdobeStock_1174584_kopie

Stable levitation due to the Meissner-Ochsenfeld effect

Supraleiter

Structure of a superconductor cable: conductor, insulation, cooling

AdobeStock_884151257_kopie

CERN facility for research into elementary particles

AdobeStock_75288529_kopie

Maglev railway without direct contact to the rails
